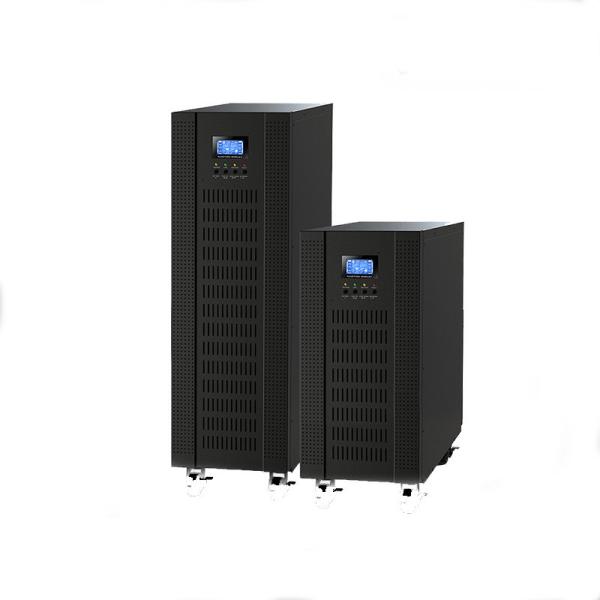

15KVA Tower Type High Frequency Online UPS Three Phase 380 / 400 / 415Vac

Product Categories

Shenzhen Zhongguanda Technology Co., Ltd.

Contact Now

15KVA Tower Type High Frequency Online UPS Three Phase 380 / 400 / 415Vac

Brand Name : ZGD

Model Number : ZGD33-15K (L)

Place of Origin : Guangdong, China

MOQ : 1

Price : $400.00/Pieces 1-9 Pieces

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 15-30 work days

Phase : Three Phase

Protection : Lightning

Weight : 64kg

Type : On-line

Application : COMPUTER

Product name : Online UPS Systems

Capacity : 15KVA

Wave Form : Pure Sine Wave

Battery Type : Lead Acid Battery

Color : Black

Certificate : CE,ULRohs,GS

Input voltage : 305-478VAC

Display : LCD

Name : High Frequency Ups Power

Products : Three Phase Online UPS

Port : Shenzhen

Contact Now

15KVA Tower-type High Frequency Online UPS Three Phase 380/400/415Vac

True double-conversion
DSP technology guarantees high performance
Output power factor 0.9
Wide input voltage range (110-300 VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
Eco mode operation for energy saving (ECO)
Accepts dual power inputs
Emergency power off function (EPO)
Generator compatible
SNMP+USB+RS-232 multiple communications
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers
Maintenance bypass available
Optional N+X parallel redundancy
Optional isolation transformer offers full isolation and complete common mode noise rejection

MODEL		GH33-10K (L)	GH33-15K (L)	GH33-20K (L)	GH33-30K (L)
PHASE		3 phase in / 3 phase out
CAPACITY		10000VA / 9000W	15000VA / 13500W	20000VA / 18000W	30000VA / 27000W
INPUT
Nominal Voltage		3 x 400 VAC (3Ph+N)
Voltage Range		305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load
Frequency Range		46~54 Hz or 56~64Hz
Power Factor		≥ 0.99 @ 100% load
OUTPUT
Output Voltage		3 x 400 VAC (3Ph+N)
AC Voltage Regulation		± 1%
Frequency Range		46~54Hz or 56~64Hz
Frequency Range		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear Load)
Transfer Time		zero
Waveform (Batt. Mode)		Pure Sine Wave
EFFICIENCY
AC Mode		89%	89%	89%	90%
Battery Mode		86%	88%	87%	89%
BATTERY
Standard Model	Battery Type	12 V / 9 AH
	Numbers	18/20 pcs adjustable	2*18/20 pcs		3*18/20 pcs
	Recharge Time	9 hours recover to 90% capacity
	Charging Current	1A	2A	2A	4A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers
	Charging Current	4A	4A	4A	12A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension	815250826	815250826	815250826	8153001000
	Net Weight	109kg	164kg	164kg	234kg
Long-run Model	Dimension	592250826	592250826	592250826	815250826
	Net Weight	38kg	40kg	40kg	64kg
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 60dB @ 1 Meter	Less than 65dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser
