Hybrid 5kw 3kw Off Grid Inverter With MPPT Solar Charger Controller

Brand Name : ZGD

Certification : CE

Place of Origin : SHENZHEN

MOQ : 1 sets

Price : $220.00/Sets 1-19 Sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 sets per month

Delivery Time : 7~15 working days

Packaging Details : Wood plywood packing

Input Voltage : 230V

Output Current : 10.9-45.5A

Output Type : Single

Type : DC/AC Inverters

Certificate : IEC, CE

Application : Solar Power System Home

Contact Now

Product Paramenters

Model	5200-48
RATED POWER	5200VA/5200W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)
Selectable Voltage Range	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode)	230 VAC ± 5%
Surge Power	10000 VA
Efficiency(Peak) PV to INV.	97%
Efficiency(Peak) Battery to INV.	94%
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Maximum Charge Current	60 A
SOLAR CHARGER
Maximum PV Array Power	5000W
MPPT Range@Operating Voltage	120 - 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension, DWH (mm)	100 * 300 * 440
Net Weight(kgs)	10
Communication interface	USB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity ( Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

What is Solar Inverter?

 Solar inverters are used in photovoltaic (PV) systems to convert the DC voltage supplied by the solar cells into AC voltage, to adapt it to the voltage level of the power grid and feed it to the grid.

 A solar inverter primarily plays the following roles in a solar power system:
 * Conversion of DC to AC power.
 * Maximization of energy production.
 * Ensuring safe system operations.
 * Improved grid assistance capabilities.
 * Efficient tracking of power output.

Features

* Pure Sine wave inverter
 * Configurable input voltage range for home appliances and personal computer via LCD setting

 * Configurable battery charging current based on applications via LCD setting

 * Configurable AC/Solar Charger/Controller priority via LCD setting

 * Compatible to mains voltage or generator power

 * Auto restart while AC is recovering

 * Overload/Over temperature/ Short circuit protection

 * MPPT Smart battery charger controller design for optimized battery performance

 * Cold start function

Products Description

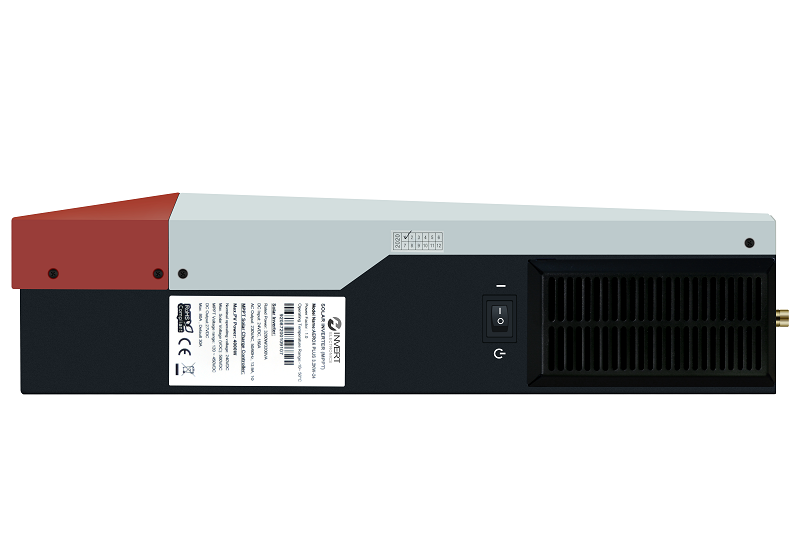

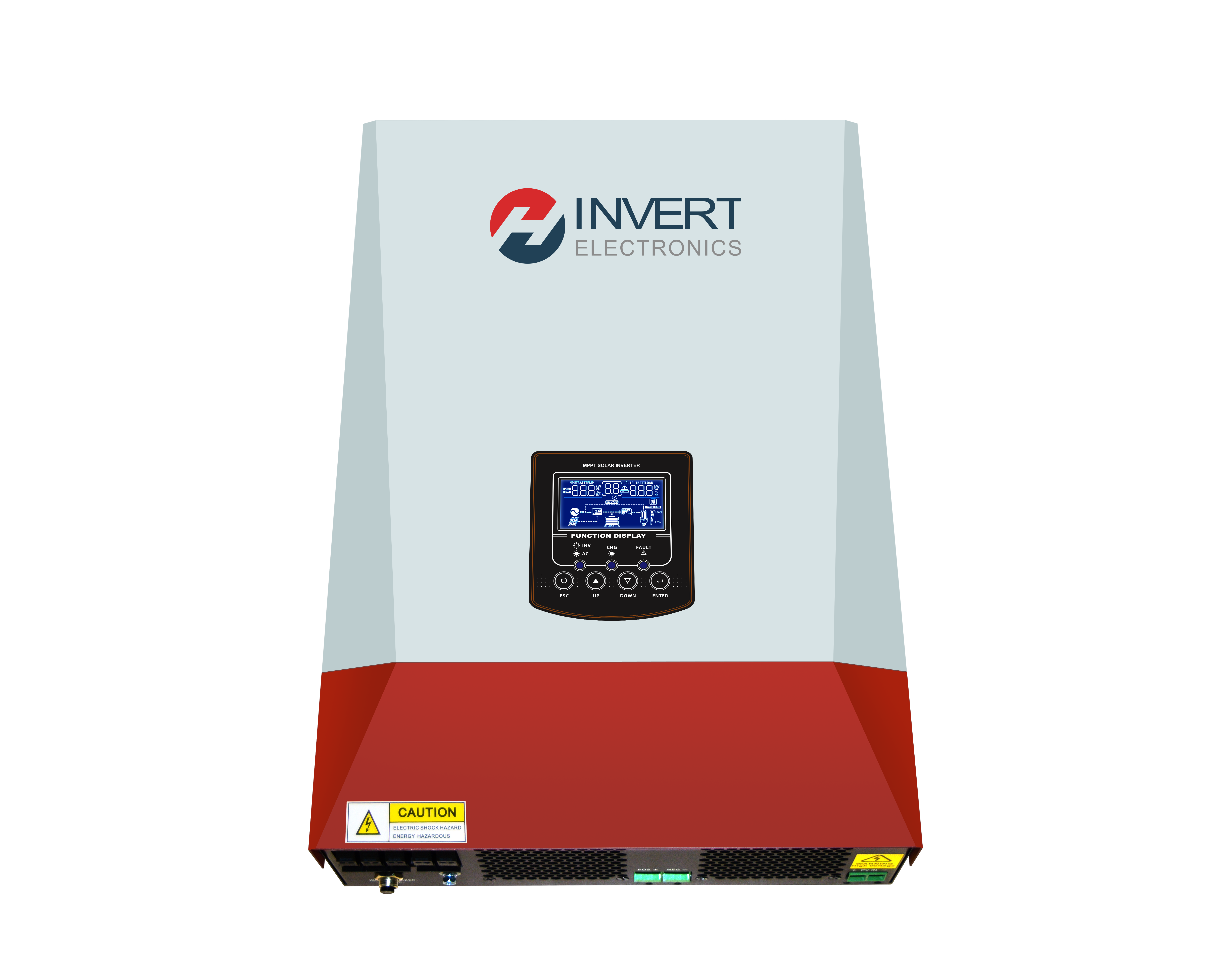

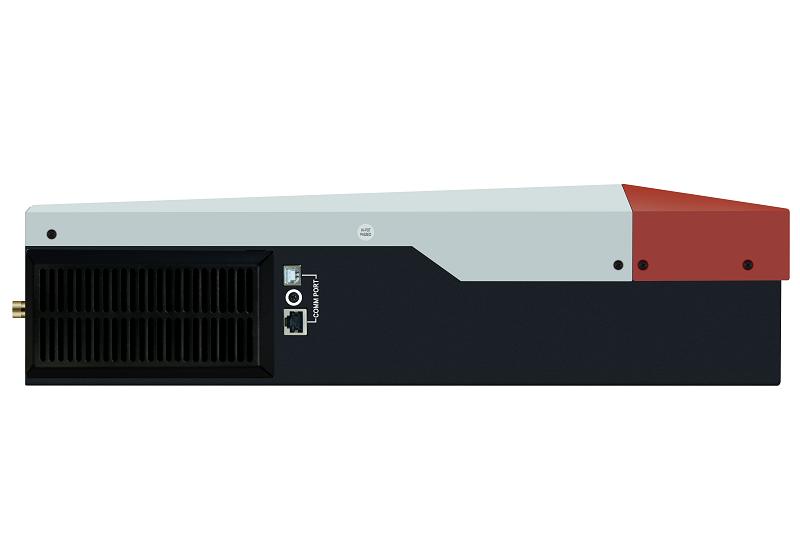

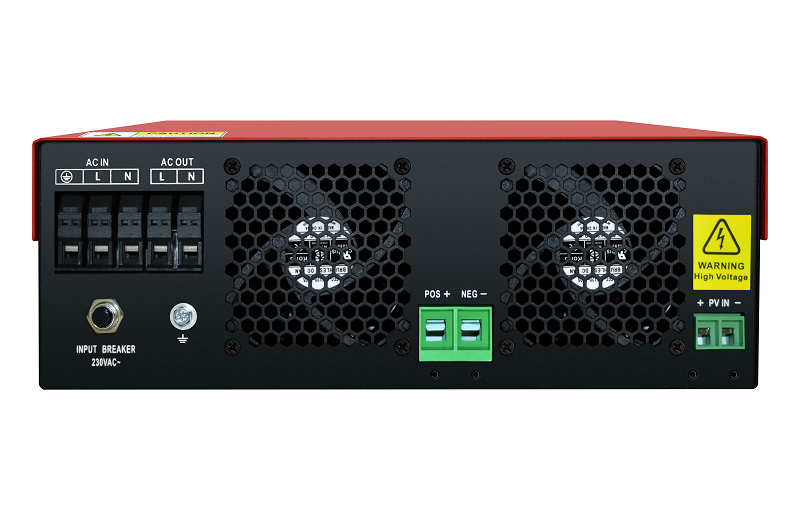

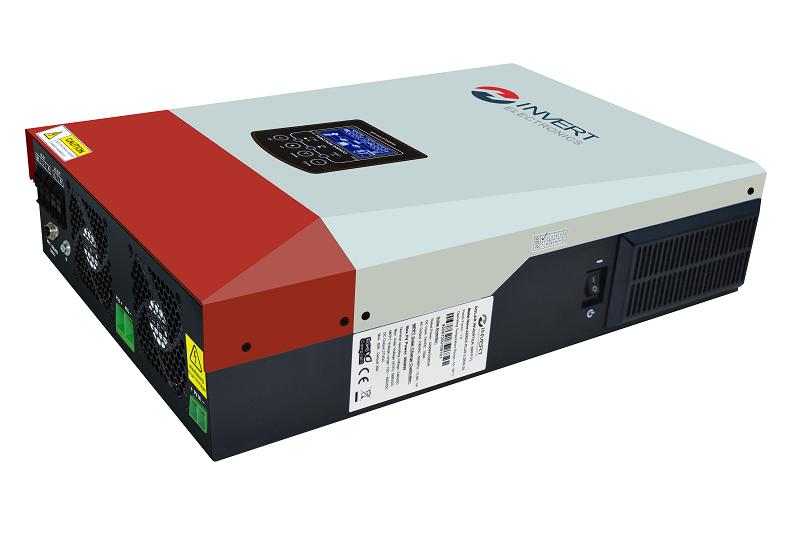

Hybrid 5kw 3kw Off Grid Inverter With MPPT Solar Charger Controller

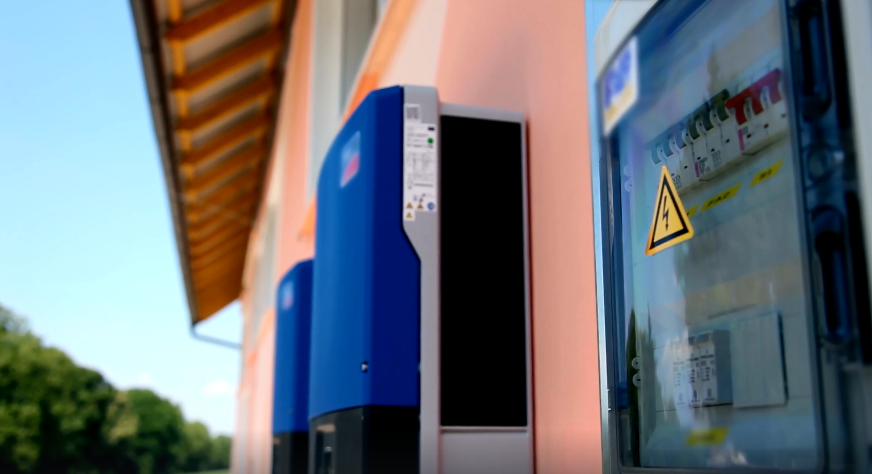

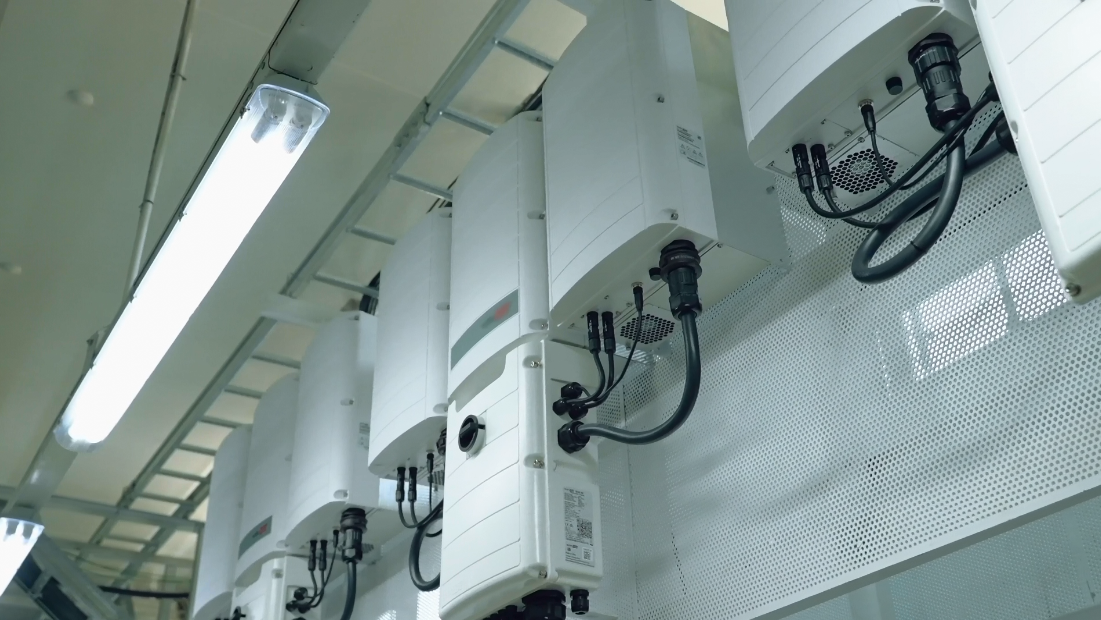

Application

Product Tags:

3kw Off Grid Inverter

MPPT Off Grid Inverter

Hybrid MPPT Solar Inverter

Hybrid 5kw 3kw Off Grid Inverter With MPPT Solar Charger Controller Images
